Electrical packages for VW vans: 230V introduction and charging function

230V ENTRY INCL. CONNECTION WITH MULTIPLE INTERNAL SOCKET OUTLET AND FI PROTECTION

In Volkswagen buses, we install a 230V inlet including a high-quality Votronic charger for charging and conditioning the vehicle battery/ batteries:

Overview and advantages

• Power connection in the vehicle, e.g. for hairdryer, laptop use and for charging your mobile devices
• Laying a 230V cable through the hood into the vehicle interior
• the cable is not crushed, as a gap of approx. 8 mm remains even when the hood is closed
• The 3-socket power strip is usually located next to the driver's seat
• All cables required for camping vacations can be stored under the hood in the battery compartment to save space
• No change to the vehicle
• No interference with the vehicle's electrical system
• the vehicle warranty is retained
• No TÜV registration required
• TÜV-compliant for motorhome registration
• Our extension variant is an alternative to the frequently installed external socket outlet, which is embedded in the sheet metal

Other recommended accessories: 25 m extension cable, CEE adapter cable (see below, not included)

Suitable for

VW T5 / T6 / T6.1
Installation at the VanEssa plant

VANESSA ALL-ROUND CAREFREE PACKAGE
INCL. TWO CHARGERS, MULTIPLE INDOOR SOCKETS, FI PROTECTION AND INSTALLATION

for vehicles with two batteries

Overview and advantages

• 230V entry (see above for details)
• Installation of charger: Votronic charger Pb 1220 SMT 2B, see below for technical details.

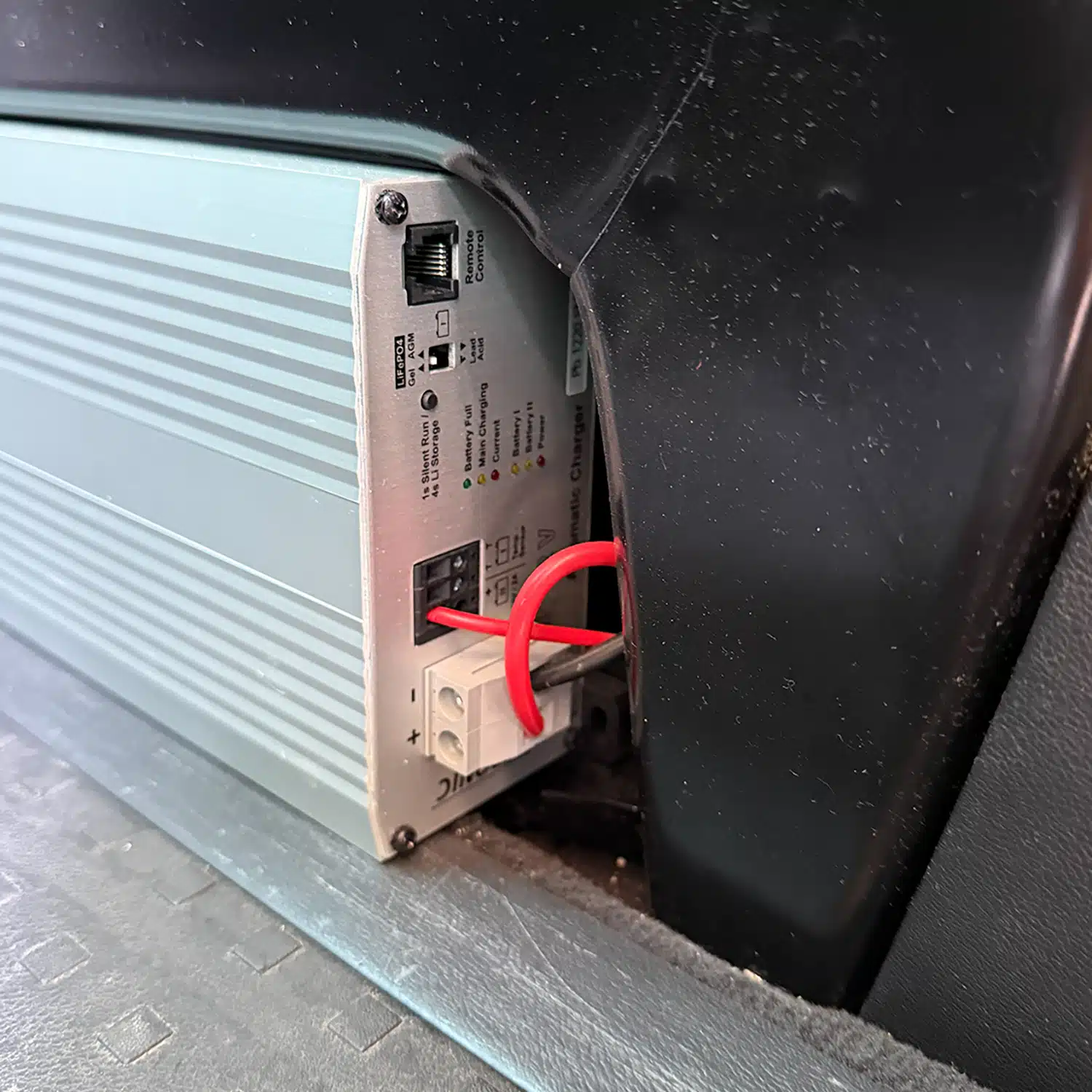

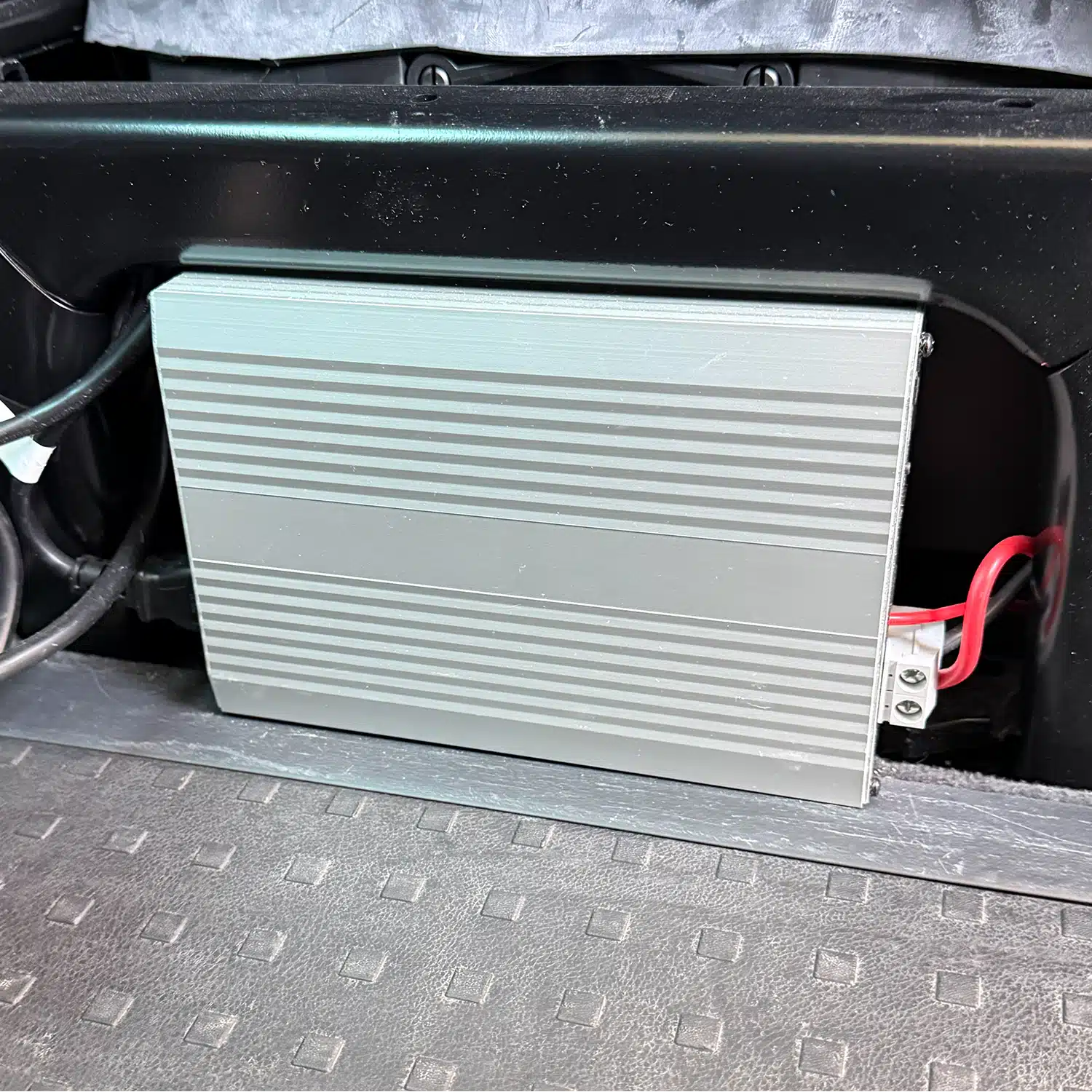

• Charger positioned behind driver's seat and multiple socket next to driver's seat
• Easy handling: just open the hood of your vehicle at your vacation destination or at home and plug in the cable
• you automatically have 230V in the car
• Both batteries are charged simultaneously using the two chargers
• No TÜV registration required
• TÜV-compliant for motorhome registration

Suitable for

VW T5 / T6 / T6.1
(Selection via dropdown)

12 VOLT SOCKET
BEHIND THE DRIVER'S SEAT OR IN THE REAR

An additional 12V socket is often desirable, usually even necessary. Also because many vehicles automatically switch off the 12V universal sockets with the ignition. We offer an elegant plug-in solution to supply the kitchen or cool box with continuous power.

Overview and advantages

• 12V socket for connecting VanEssa interior modules/kitchen and rear kitchen or electrical items such as cool box
• VanEssa relocates the 12V socket to where it is needed
• A separate cable with an additional 12V socket is laid from the battery
• No interference with the vehicle's original electrical system
• the vehicle warranty is retained
• No TÜV registration required

Suitable for
VW T5 / T6 / T6.1

Price
 depending on expenditure (see dropdown)

Votronic charger Pb 1220 SMT 2B

The all-round charger for charging the starter and/or on-board battery.

Overview and advantages

• High-quality, intelligent battery chargers from the renowned quality manufacturer Votronic
• Fast and effective charging of your vehicle's starter and/or on-board battery
• Deep-discharged batteries can be restored to full capacity
• conditions and charges batteries in the shortest possible time
• All in one: small, robust, durable
• Quick and easy to use: simply connect to the battery - the charger does the rest
• Safe charging guaranteed: electronically safe, spark-protected, with reverse polarity protection
• Votronic chargers are of very high quality and have been awarded several times as test winners in the field of battery chargers
• Suitable for all vehicles after consultation (selection via dropdown)

Votronic Pb 1220 SMT 2B

• Charging program no. adjustable: Gel, AGM, acid, LiFePO4* (except 24V)
• Automatic battery regeneration / Li Auto Wake Up
• Power supply function (battery replacement)
• Remote control/display connection
• Silent run function
• Lead temperature compensation / LiFePO4 protection
• Dimensions (L x W x H): 228 x 139 x 74 mm

Technical details

• Rated voltage: 12V
• Charging current / auxiliary charging output: 20 A / 2 A
• Battery capacity: 50...230 Ah
• Number of charging outputs: 1+S
• Mains voltage: (110 V) 230 V AC
• Max. Power consumption (AC): 330 W
• Weight: 1280 g
