Bed extension - Cabinet with WC / cool box / storage space for Ford Tourneo & Transit Custom until 2023 | Graphite body

Name: Bed extension - Cabinet with WC / cool box / storage space for Ford Tourneo & Transit Custom until 2023 | Graphite body
Brand: Interior modules
SKU: 3674
Availability: InStock

Bed extension optionally with WC, cool box or storage drawers

Photo upload: Photos of your vehicle

Contact: Do you have a question about this product?

from

965,00 €

incl. VAT | free shipping*

Fast delivery

Delivery time approx. 18 working days

Delivery by forwarding agent

Fully assembled, quick to install yourself

Free delivery within DE

Collection & installation on site

Ready for collection in approx. 10 working days

5% Discount for self-collectors¹

Free installation service

With appointment

Configure your module:

Select your suitable configuration to add the product to the shopping cart.

Item number for your selection:

Ford

Tourneo Custom (from 2018 to 2023 | after facelift)
Tourneo Custom (until 2018 | before facelift)
Transit Custom (from 2018 to 2023 | after facelift)
Transit Custom (until 2018 | before facelift)

Vehicle length

short wheelbase

1st row of rear seats

Preparation for 2-seater bench seat
Preparation for individual seats

Suitable for

VanEssa sleeping system (70 cm)

Bottom drawer

Drawer suitable for Trelino EVO M dry separation toilet
Drawer suitable for Trelino EVO M dry separating toilet and Dometic CF-35 cool box
Drawer suitable for chemical toilet DOMETIC 976
Drawer suitable for chemical toilet DOMETIC 976 and cool box Dometic CF-35
Drawer suitable for Dometic CF-35 cool box
As a fixed storage drawer

Graphite carcase with fronts in decor

from

155,00 €

incl. VAT.

Rolling plate for VanEssa storage module

To the shopping cart
add

View

Rolling plate

55,00 €

incl. VAT.

Share this product

Bed extension interior module carcase graphite wild oak frontal

LONG SLEEPING SURFACE WITH THE VANESSA BED EXTENSION FOR YOUR FORD TOURNEO CUSTOM AND TRANSIT CUSTOM

VanEssa bed extension - the perfect addition to our VanEssa sleeping systems: A camping bed up to 233 cm long.

Specially developed for people who need a longer bed than the standard length due to their height.

Two drawers offer additional storage space, alternatively also for a cool box or camping toilet (optional via dropdown).

The extension is upholstered with the same comfortable filling as our VanEssa sleeping pads. The height is adjusted to the height of our sleeping systems or your sleeping bench.

Your Tourneo & Transit Custom remains an everyday van that you can quickly convert into a motorhome as required. The VanEssa bed extension can be removed again in no time at all and you have space for everyday use again.

Overview and advantages

Wardrobe module to extend the bed to up to 2.33 meters
No more chaos in the camper
Lower pull-out can be used variably & flexibly: as a fixed drawer, compressor cool box or as a toilet
Cool box or WC pull-out alternating with storage space insert if required
Delivery as a complete piece of furniture
Very easy installation and removal in 5 minutes
Maximum flexibility thanks to quick installation and uncomplicated handling
No modifications to the vehicle are necessary (drilling etc.)
No additional tools required; simple attachment using only the hand screws or Allen key supplied

Installation

Place bed extension module behind driver's seat
Attach to existing seat anchorage points on your Tourneo & Transit Custom
for effortless installation/removal and storage: optional Transport roller plate ℹ for VanEssa interior modules

Explanation of the vehicle equipment (Selection via dropdown)

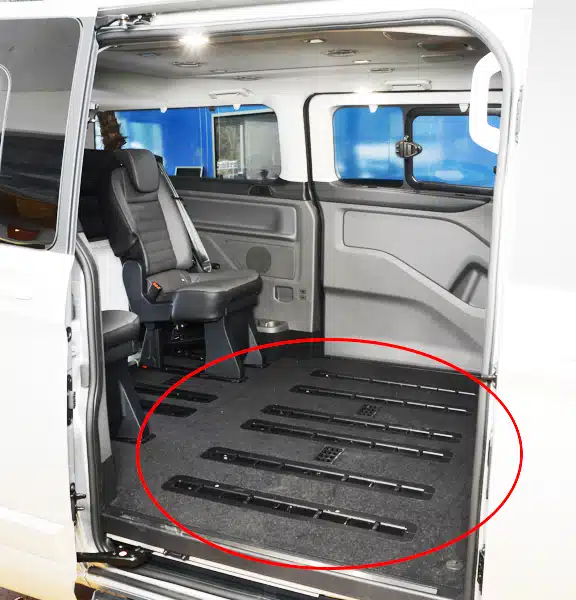

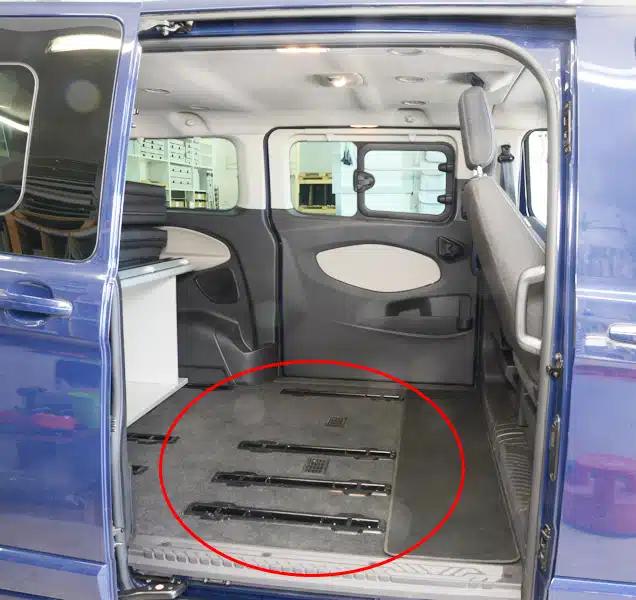

Seat anchorage points in the 1st row of rear seats directly behind the driver's seat:

Possible seat variants

Short & long wheelbase

The first row of rear seats must always be removed when using the storage module.

Legend

Individual seats

Bench for two

Double bench with single seat

General

Bed extension is supplied as a complete piece of furniture with corresponding mounting set

Top drawer

Drawer as variable storage space option
on 30 kg soft full-extension runner
Drawers with manual push-back lock
with anti-slip mat

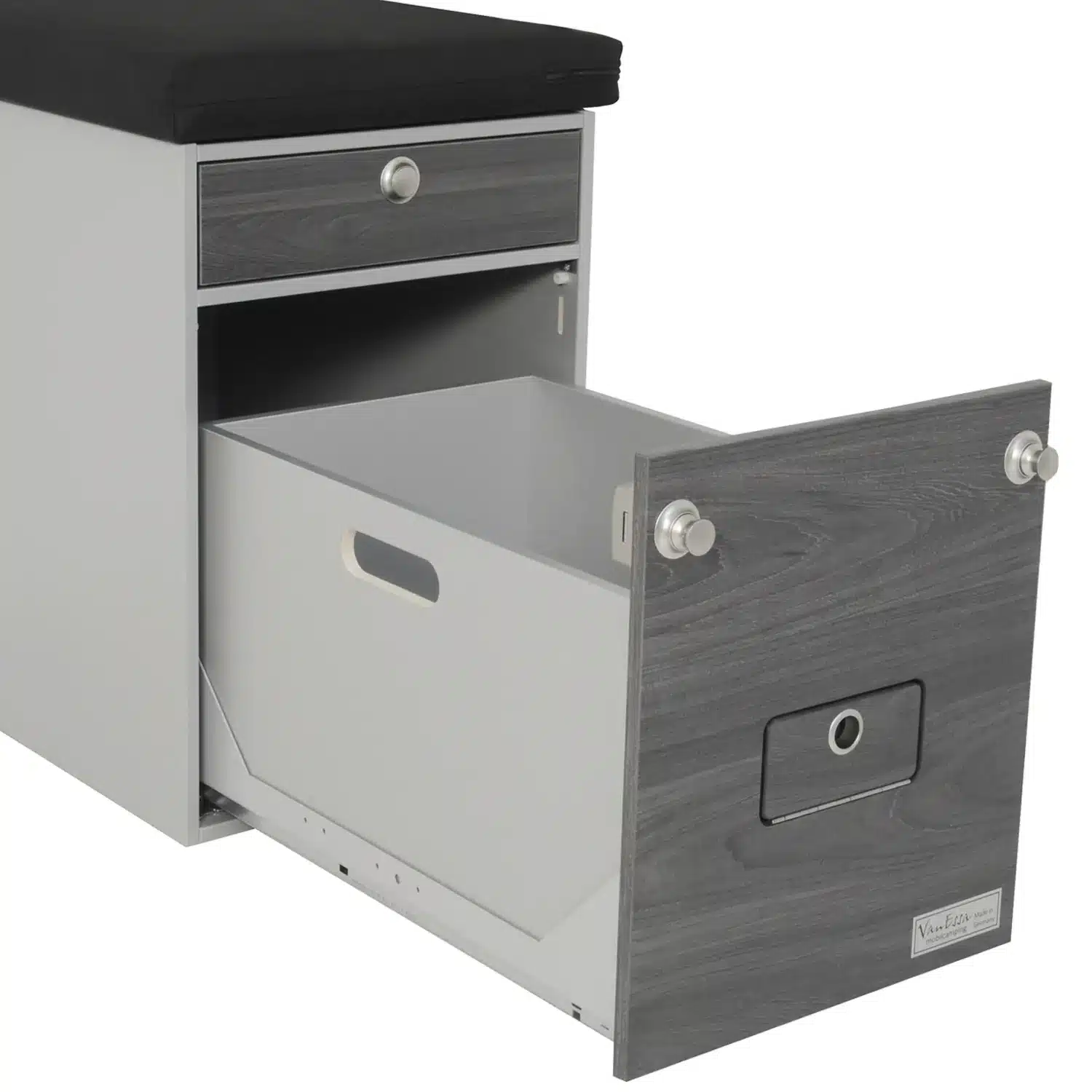

Bottom drawer

on 40 kg soft full-extension runner
Two Push-Lock locks as additional security due to the weight
Automatic push-back lock

Alternative 1: Drawer as Storage space option ℹ

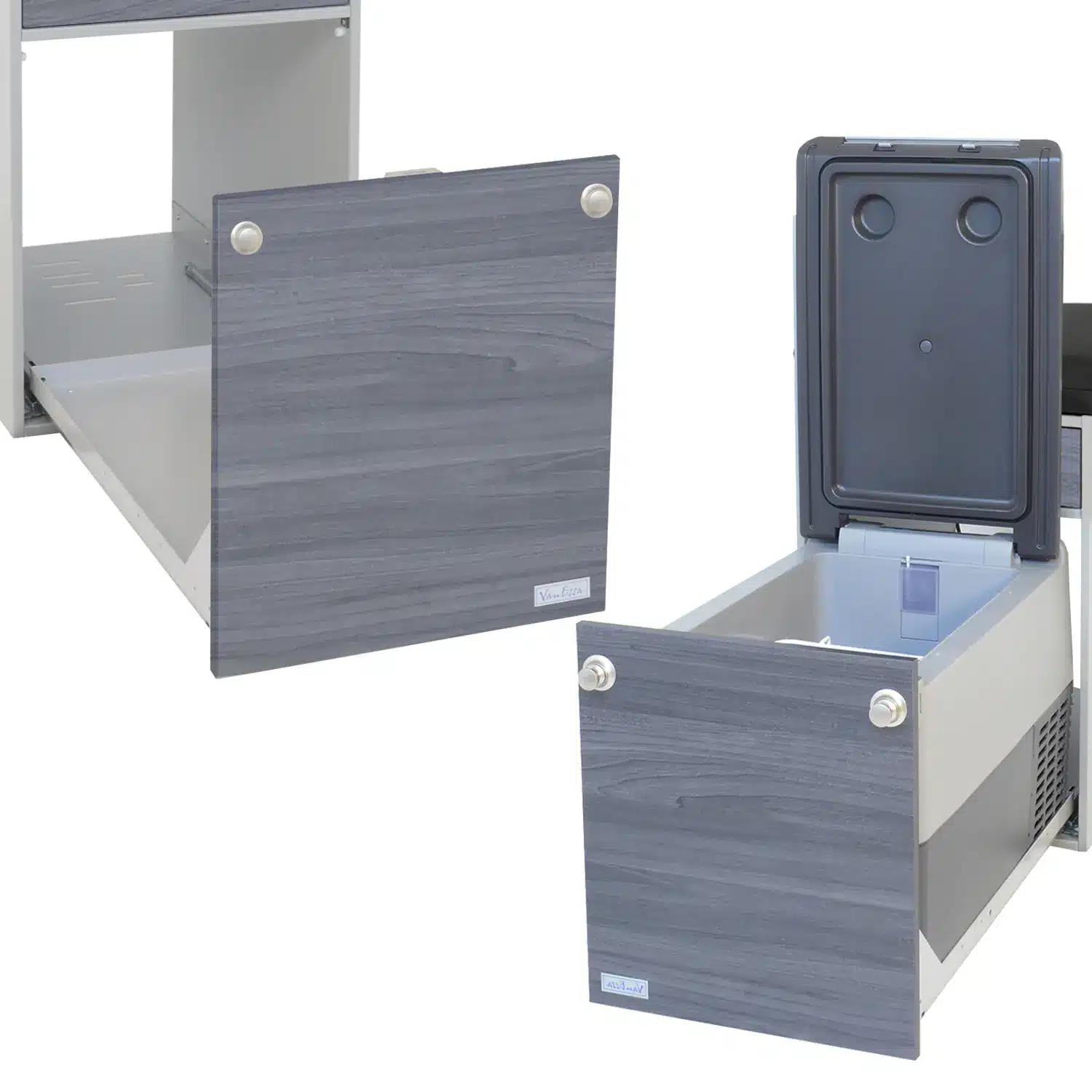

Alternative 2: Cool box drawer ℹ Pull-out with stable base without side/back panels for very high performance Compressor cooler ℹ (selection in dropdown), approx. 30 ltr.
Alternative 3: WC drawer with Dometic 976 water toilet ℹ and flap in the front for flushing or Trelino dry separation toilet ℹ

Additional option: Storage space insert ℹ for using the cool box/toilet drawer as a storage compartment instead of a cool box/toilet

Body material

12mm poplar plywood with CPL noble design coating (graphite)

Decor fronts

Silver and black matt in CPL noble design
Swiss, Bulli and wild oak wood decors made of HPL

High-quality furniture fittings

Blum pull-outs with soft-close function, beautifully designed push locks with concealed rosettes, hinges etc.

Weight

Storage module: 20 kg

External dimensions

Storage module: B 40 cm, T 58.5 cm, H 56 cm

Recommendations
