Arco System - Sleeping system with heavy-duty pull-out - VW Multivan T5 / T6 / T6.1

The Arco system has been specially developed for anyone who wants a lot of space and organization in their van. The basis is always a single bed, consisting of a tunnel with a heavy-duty pull-out and an extendable sleeping board. In addition to the tunnel, you can stow long, bulky items such as kiteboards or even transport bicycles during the journey.

The double bed extension with through-loading function allows you to use the long loading area under the bed from the rear to behind the driver's or front passenger seat despite the bed being set up.
Alternatively, you can extend the single bed with a second tunnel. The additional heavy-duty pull-out provides you with even more organized and easily accessible storage space.

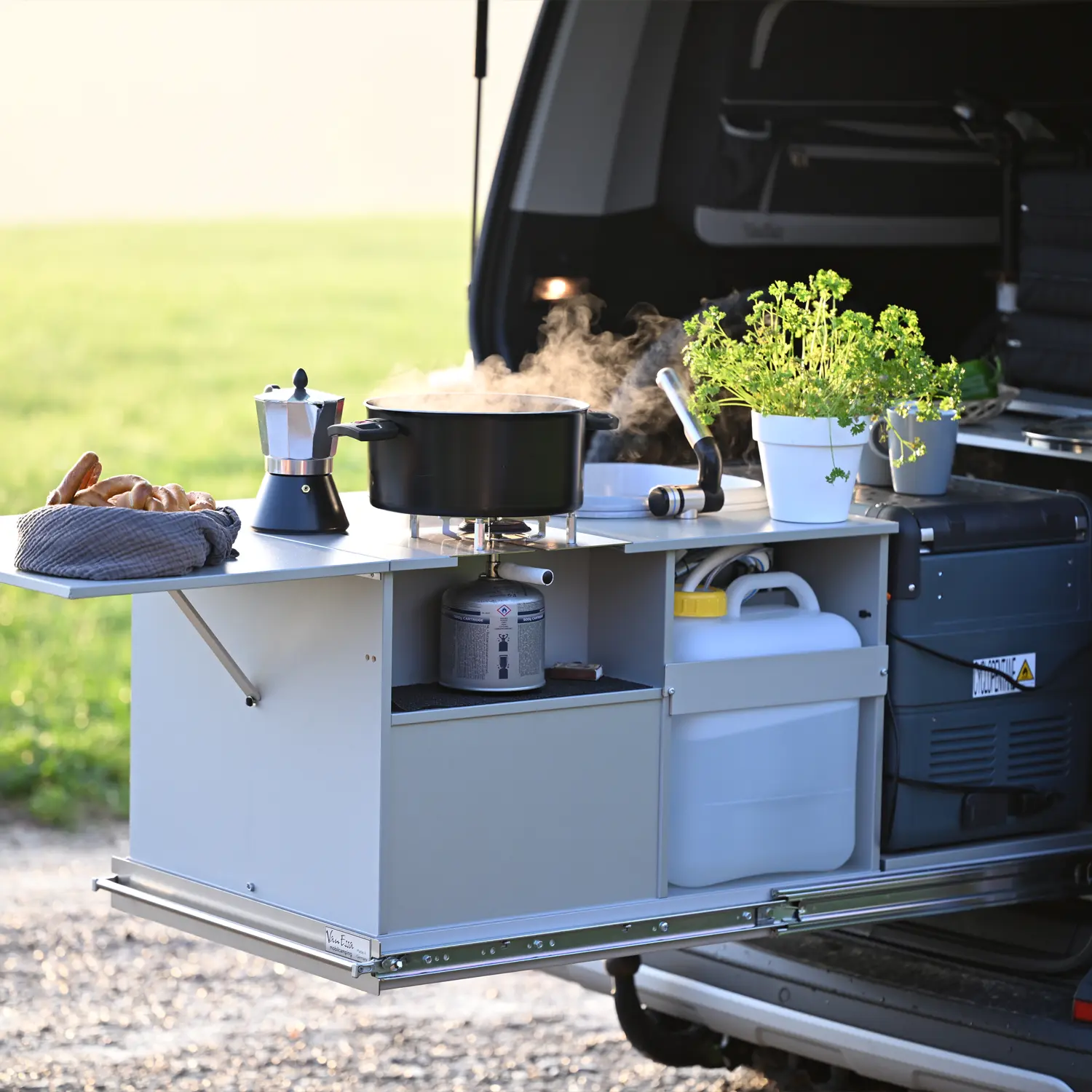

You are perfectly equipped for camping with the right Arco kitchen ℹ.

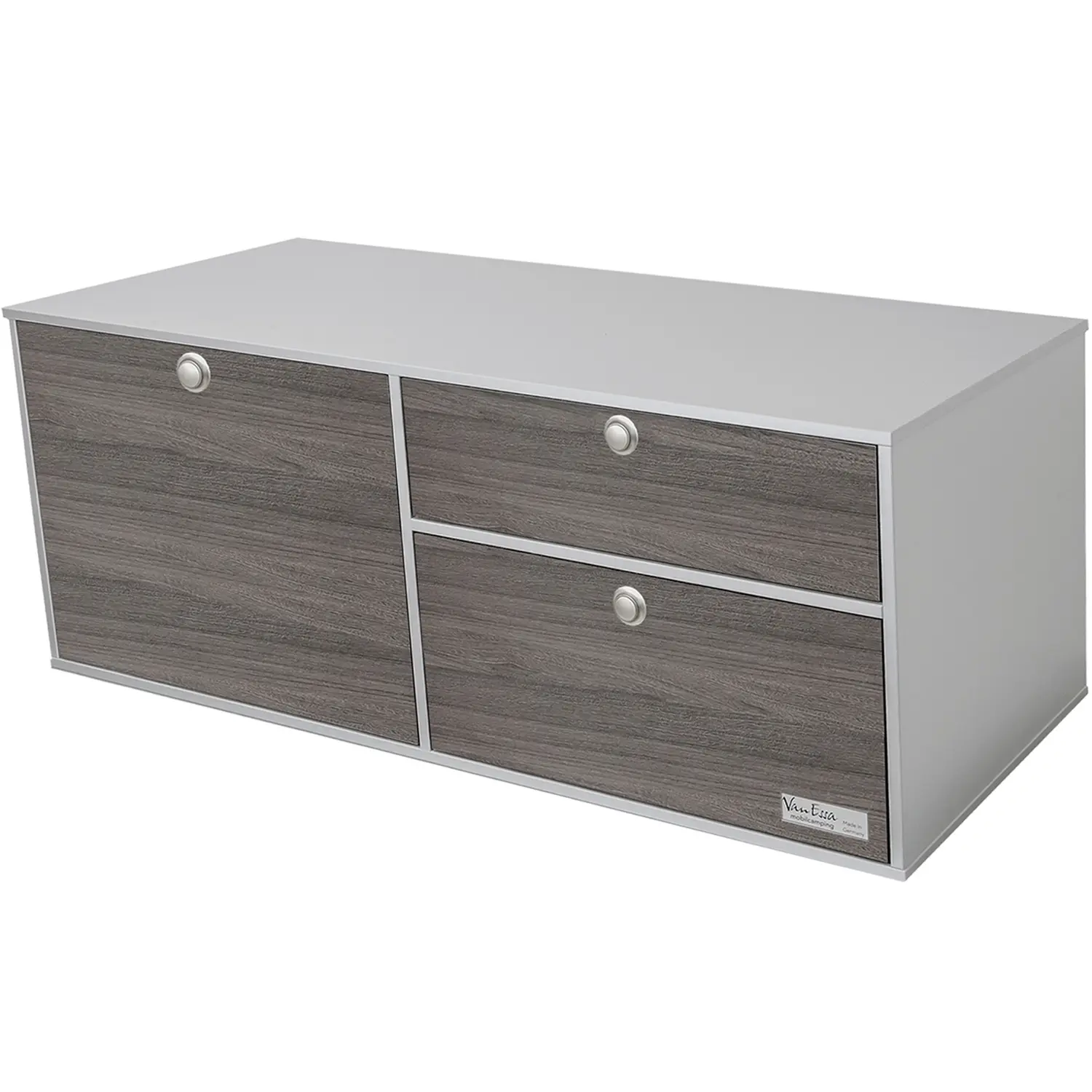

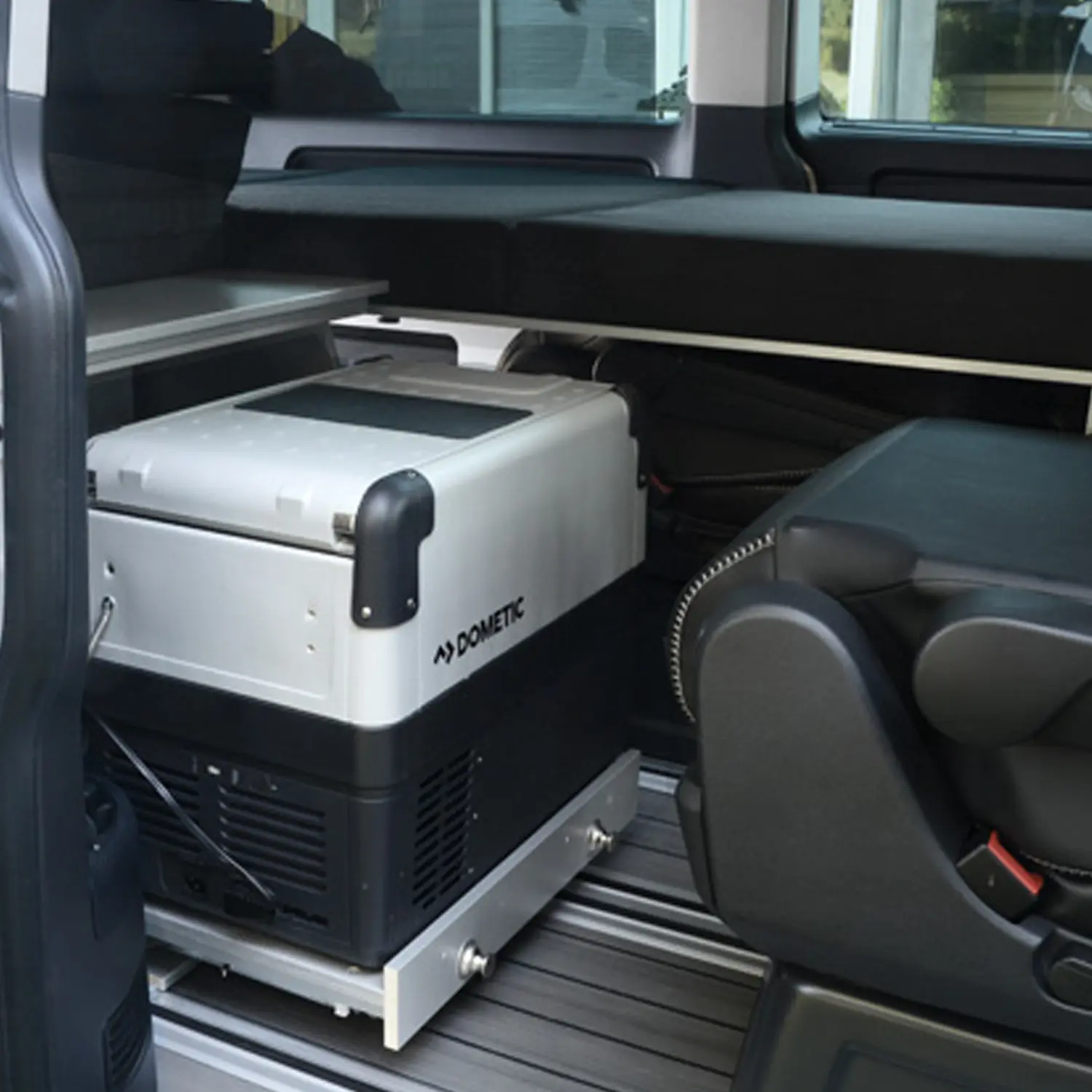

It is fixed on the heavy-duty pull-out, behind which there is still space for the Dometic CFX2 28 compressor cooler. Another option is the Arco storage module ℹ instead of the kitchen or additionally on a second heavy-duty pull-out. Alternatively, you can use the practical Stacking boxes ℹ to organize your things.

The complete system can be removed from the vehicle at any time in just a few simple steps. Or you can leave the tunnel with heavy-duty pull-out in the vehicle and load your vehicle without straining your back in everyday life.

Overview and advantages

Arco system in general

• 250 kg soft full-extension runner (heavy-duty runner) in the tunnel
• Arco tunnel possible on the right and/or left in the rear of the vehicle
• No modifications to the vehicle are necessary (drilling etc.)
• No additional tools required; simple attachment using only the hand screws or Allen key supplied
• Very easy assembly and disassembly of the sleeping system
• Easy conversion from single to double bed
• Maximum lying comfort on VanEssa COMFORT sleeping pad(s)
• Optimum, back-friendly loading of the rear area thanks to heavy-duty pull-outs/pull-outs
• Maximum flexibility
• Ideal for vehicles with 1-2 individual seats or without seats
• Use of the heavy-duty pull-out even in everyday life
• optional with our VanEssa camping box  Arco kitchen ℹ and/or VanEssa Arco storage module ℹ expandable

Arco base 1 tunnel / single bed

• 1 tunnel / single bed, possible on the right or left in the rear of the vehicle
• Loading facility for bulky, long items such as bicycles, kiteboards etc. next to the tunnel / bed
• optionally with  Arco kitchen ℹ (For description see tab Scope of delivery)
• or optionally with Arco storage module ℹ with three generous pull-outs (see Scope of delivery tab for description)
• Kitchen / storage module can be flexibly dismantled/assembled at any time from the heavy-duty pull-out

Arco base 1 tunnel extended with double bed extension with through-loading function

• 1 tunnel with mobile extension to double bed
• Tunnel, right or left in the rear of the vehicle possible
• Possibility of loading long items underneath the double bed
• optionally with Arco kitchen ℹ (Description see Options tab)
• or optionally with Arco storage module ℹ (Description see Options tab)
• Kitchen / storage module can be flexibly dismantled/assembled at any time from the heavy-duty pull-out

Arco base 1 tunnel extended with second tunnel / double bed

• 2 tunnels with one heavy-duty pull-out each
• optionally with  Arco kitchen ℹ (For description see tab Scope of delivery)
• optionally with Arco storage module ℹ with three generous pull-outs (see Scope of delivery tab for description)
• Kitchen / storage module can be flexibly dismantled/assembled at any time from the heavy-duty pull-out

Structure

• Fix the tunnel to the vehicle floor with heavy-duty pull-out
• Attach the double bed extension to the tunnel and fold out the side, set down vertically
• Push the sleeping board(s) forwards and engage with the tunnel/bed extension
• Lower the folding support(s) in the front passenger compartment vertically
• Spread out the sleeping pad(s) - ready!
