ARCO SYSTEM HEAVY-DUTY PULL-OUT WITH SLEEPING SYSTEM FOR YOUR PEUGEOT TRAVELER
The Arco system has been specially developed for anyone who wants a lot of space and organization in their van. The basis is always a single bed, consisting of a tunnel with a heavy-duty pull-out and an extendable sleeping board. In addition to the tunnel, you can stow long, bulky items such as kiteboards or even transport bicycles during the journey.
The double bed extension with through-loading function allows you to use the long loading area under the bed from the rear to behind the driver's or front passenger seat despite the bed being set up.
You are perfectly equipped for camping with the right Arco kitchen ℹ.
It is fixed on the heavy-duty pull-out, behind which there is still space for the Dometic CFX2 28 compressor cooler. Another option is the Arco storage module ℹ instead of the kitchen. Alternatively, you can use the practical Stacking boxes ℹ
to organize your things.
The complete system can be removed from the vehicle at any time in just a few simple steps. Or you can leave the tunnel with heavy-duty pull-out in the vehicle and load your vehicle without straining your back in everyday life.
Overview and advantages
Arco system in general
- 250 kg soft full-extension runner (heavy-duty runner) in the tunnel
- Arco tunnel on the right in the rear of the vehicle (passenger side)
- No modifications to the vehicle are necessary (drilling etc.)
- No additional tools required; simple attachment using only the hand screws or Allen key supplied
- Very easy assembly and disassembly of the sleeping system
- Easy conversion from single to double bed
- Maximum lying comfort on VanEssa COMFORT sleeping pad(s)
- Optimum, back-friendly loading of the rear area thanks to heavy-duty extension
- Maximum flexibility
- Ideal for vehicles with 1-2 individual seats or without seats
- Use of the heavy-duty pull-out even in everyday life
- optional with our VanEssa camping box Arco kitchen ℹ
and/or VanEssa Arco storage module ℹ
expandable
Arco base 1 tunnel / single bed
- 1 tunnel / single bed, right in the rear of the vehicle
- Loading facility for bulky, long items such as bicycles, kiteboards etc. next to the tunnel / bed
- optionally with Arco kitchen ℹ
-
or optionally with Arco storage module ℹ
- Kitchen / storage module can be flexibly dismantled/assembled at any time from the heavy-duty pull-out
Arco base 1 tunnel extended with double bed extension with through-loading function
- 1 tunnel with mobile extension to double bed
- Tunnel, right in the rear of the vehicle
- Possibility of loading long items underneath the double bed
- optionally with Arco kitchen ℹ
- or optionally with Arco storage module ℹ
- Kitchen / storage module can be flexibly dismantled/assembled at any time from the heavy-duty pull-out
Structure
- Fix the tunnel to the vehicle floor with heavy-duty pull-out
- Attach the double bed extension to the tunnel and fold out the side, set down vertically
- Push the sleeping board(s) forwards and engage with the tunnel/bed extension
- Lower the folding support(s) in the front passenger compartment vertically
- Spread out the sleeping pad(s) - ready!
Explanation of vehicle equipment (selection via dropdown)
For models From 2022, the rail system changed by the vehicle manufacturer. Due to this change, the sleeping board is 10 cm longer in vehicles with a length of 4.9 m.
Accordingly, the bed base (195 cm) is longer than the mattress (189 cm).
Possible seat variations per vehicle type
With rail system
All lengths (4.6m & 4.9m & 5.3m)
The rearmost row of seats must be removed!
Heavy-duty pull-out can only be fixed on the passenger side and no second tunnel possible.
Legend
Individual seats
Bench for two
Double bench with single seat
Base 1 tunnel / single bed
- 1 Arco tunnel with heavy-duty pull-out:
250 kg soft full-extension runner with sheet metal tray with 2 automatic push-back stops at the side - 1 sleeping board with folding support (single bed)
- Single sleeping pad
- Fastening set
Base 1 tunnel with double bed extension with through-loading function
- 1 Arco tunnel with heavy-duty pull-out:
250 kg soft full-extension runner with sheet metal tray with 2 automatic push-back stops at the side - Double bed extension next to tunnel with side folding support
- 2 sleeping boards with folding supports (single and double bed)
- 2 single sleeping pads
- Fastening set
Arco kitchen
(optionally selectable as an accessory)
The Arco kitchen fits exactly on the heavy-duty pull-out in the Arco tunnel. There is still space behind it for a cool box, see description below.
General
- Kitchen is delivered as a complete piece of furniture with the corresponding fixing set or already attached to the pull-out unit
- Mounted ready to plug in (combined 12V connection for water pump and cool box)
- Anti-slip mats for all storage drawers
- Note: Prerequisite for using the sink and cool box: 12V socket with permanent plus in the passenger compartment or rear on the kitchen side. Alternatively, power supply via power station.
Sink
- 2 rinsing bowls
- Folding tap with 13 l fresh water canister (runs via 12V pump system)
- 30 kg soft pull-out
- Drawer with side automatic push-back lock
- Storage space under the washing-up bowls for washing utensils and Shower attachment (optional accessory)
Stove (various options)
- Arco gas stove Integrated in worktop
- without built-in stove (incl. Brunner Devil SD gas cartridge stove in case)
Storage drawers
- Storage space for food supplies, drinks, crockery, pots, pans, etc.
- 40 kg soft full-extension runners
- Drawers with manual push-back stops at the side
Cutlery drawer
- Space for cutlery, spices etc.
- Cutlery tray

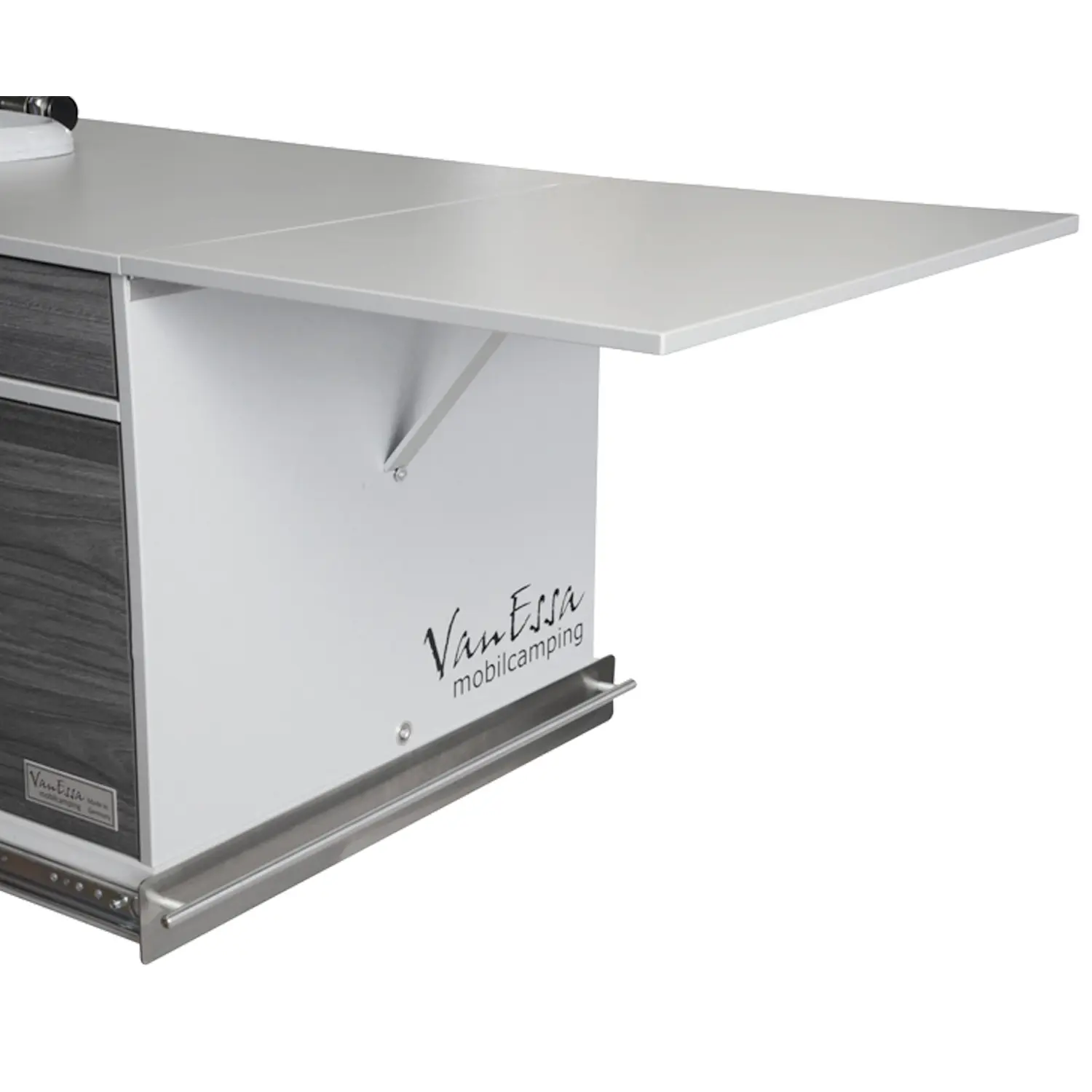

Folding table
- Side folding table ℹ
to extend the work surface

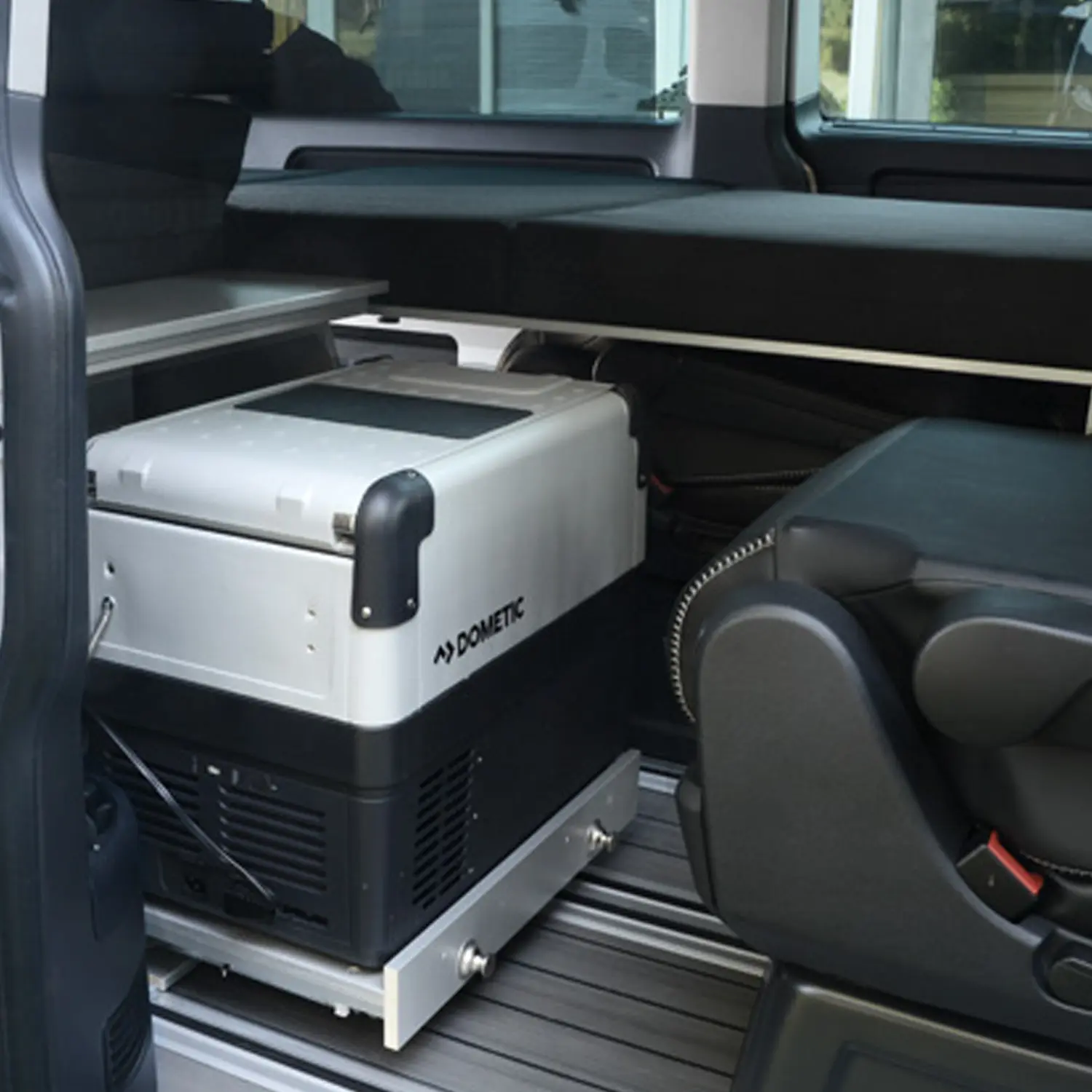

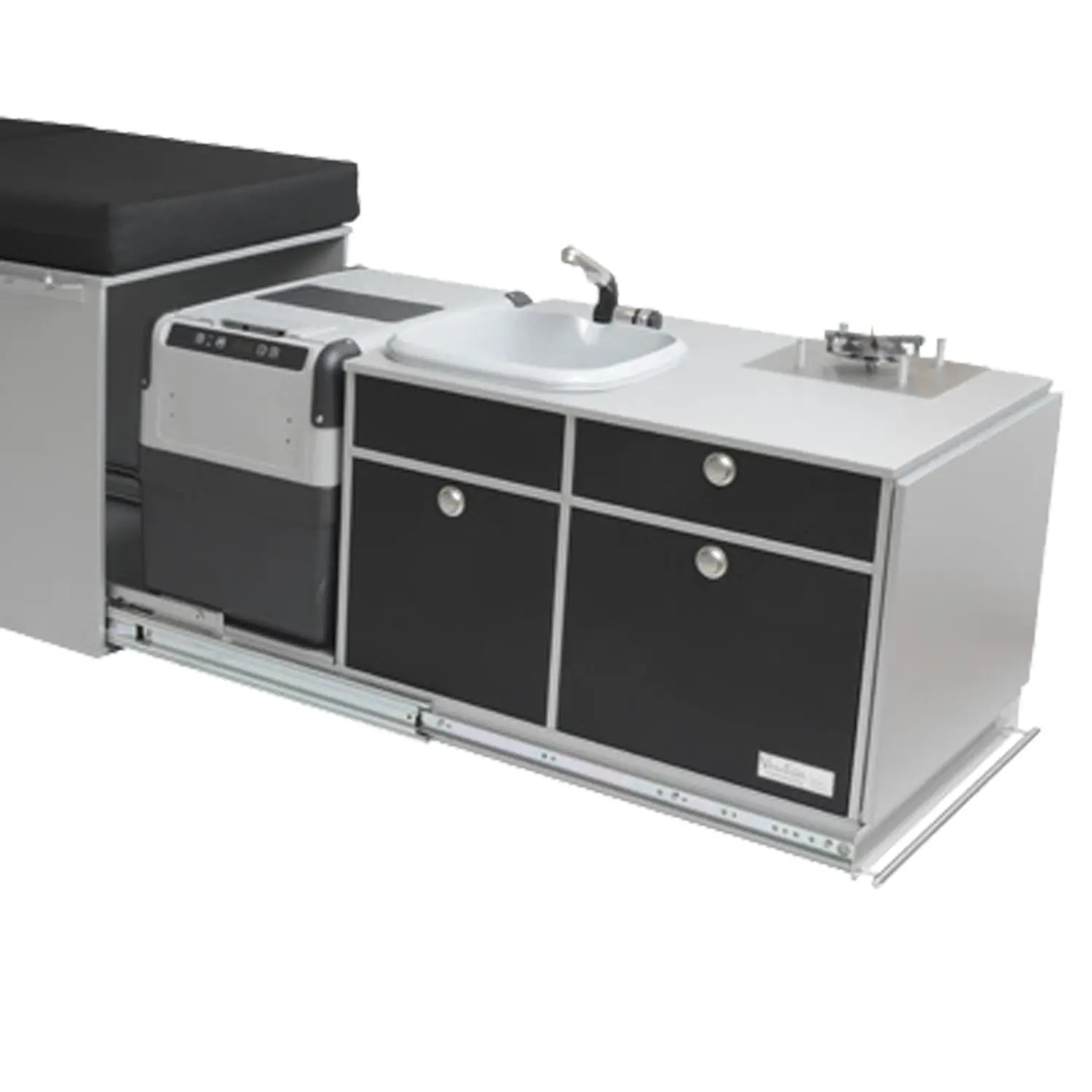

Cool box on pull-out behind the kitchen module (optional via dropdown)
- Dometic CFX2-28 compressor cooler (26 l, 12 - 230 Volt) incl. Cool box interior pull-out ℹ
for direct access in the rear (optional accessory)

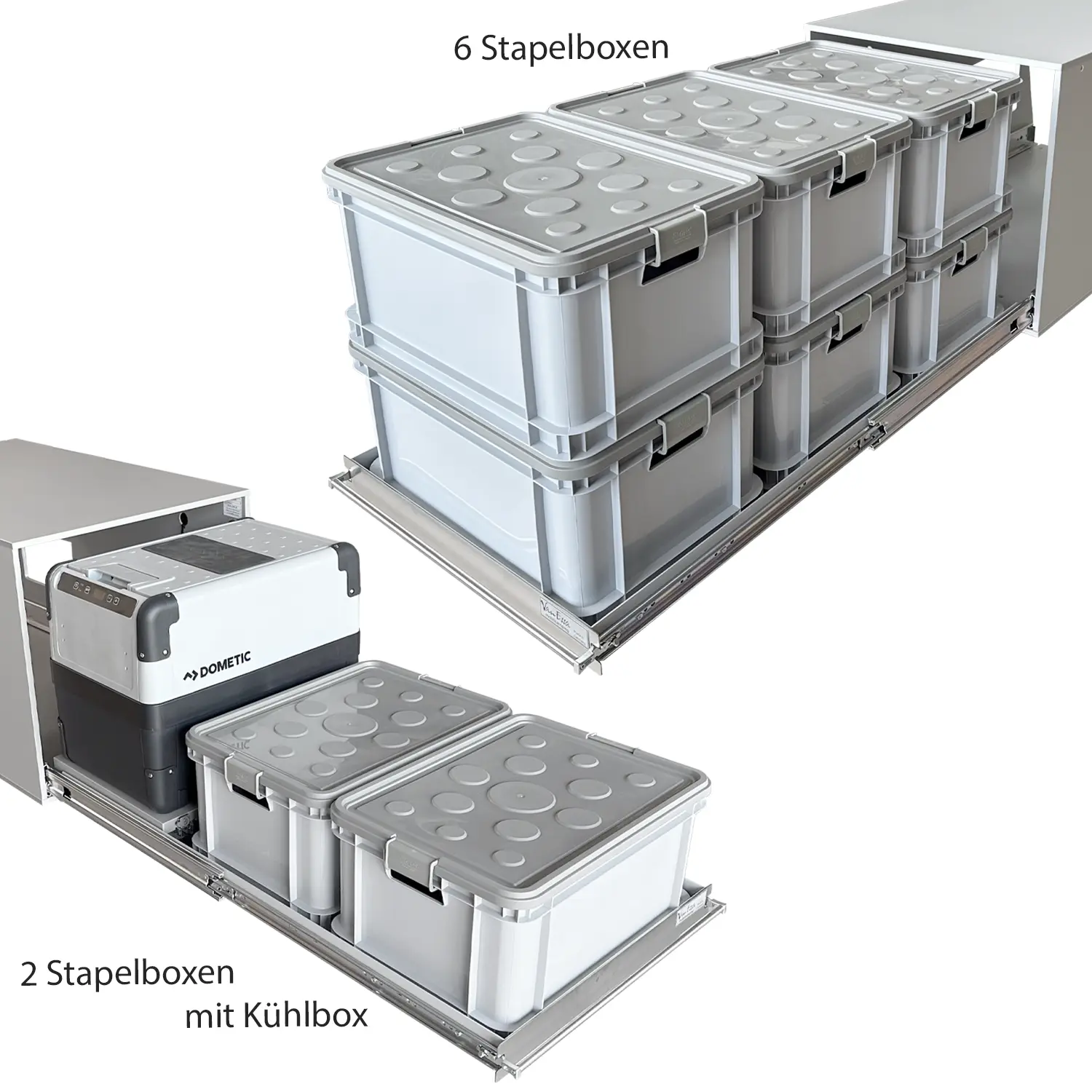

- If you already own this cool box, you can order an interior pull-out for fastening as a supplement

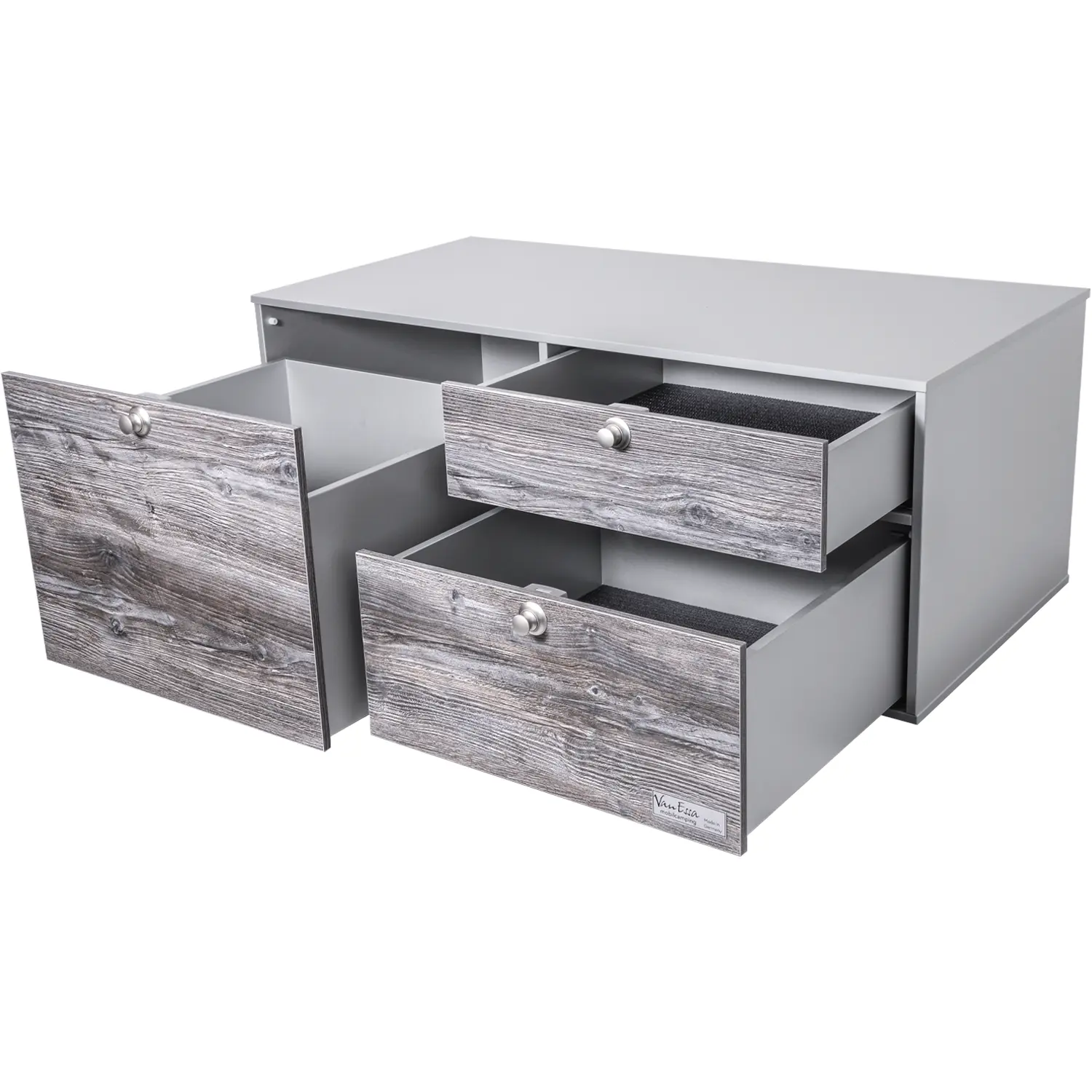

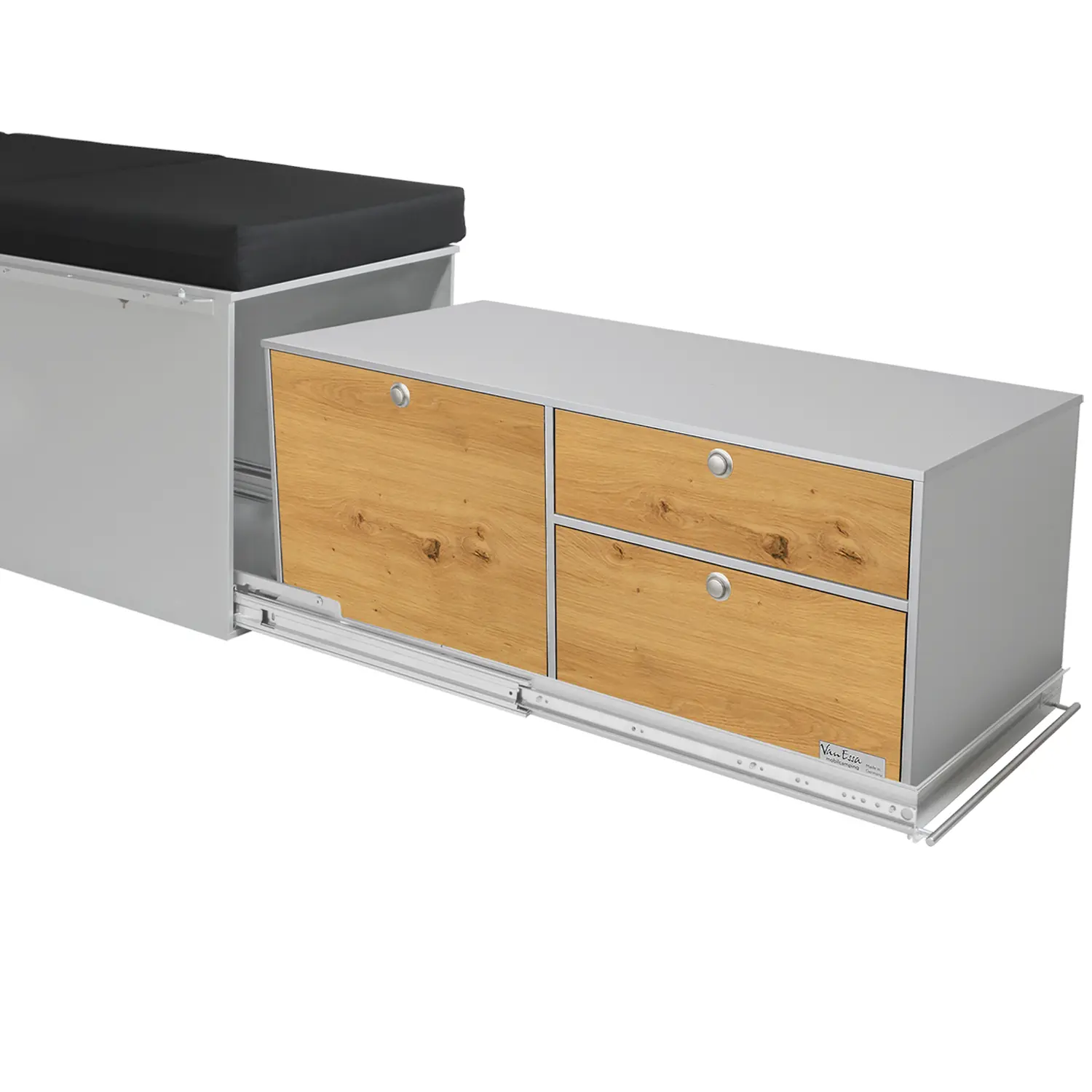

Arco storage module
(optionally selectable as an accessory)
You don't want a kitchen or want even more storage space in addition to the kitchen? Then the storage space module is ideal for keeping things tidy on the pull-out, both when camping and in everyday life.
- Module over the entire length of the heavy-duty pull-out
- Divided into 3 spacious Storage drawers ℹ
- Storage module is supplied as a complete piece of furniture with the corresponding fixing set or already attached to the pull-out
- Anti-slip mats for all drawers
Sleeping surface
Single bed
Width 68 cm, length 189 cm
Double bed
Width 136 cm, length 189 cm
Mattress dimensions
1-2 single sleeping pad(s) COMFORT, 3-piece
Width 68 cm/ 60.5 cm (tapered at the rear), length 189 cm, height 10 cm
Kitchen / storage module dimensions
Kitchen
Depth 52.5 cm
Width 72.5 cm
Height 41.5 cm
Storage module
Depth 52.5 cm
Width 107 cm
Height 52 cm
Load capacity
approx. 250 kg
Decor fronts (kitchen or storage module)

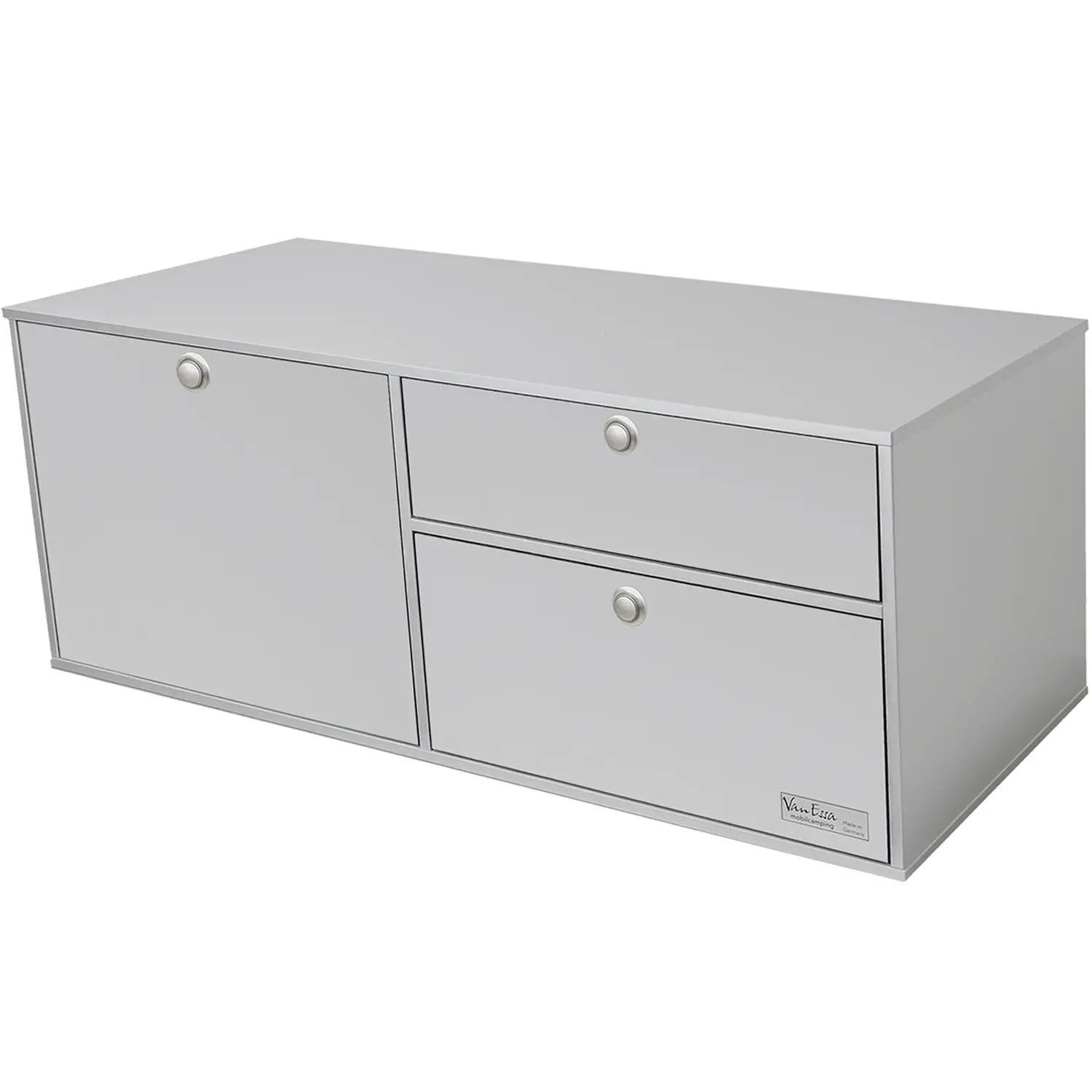

Standard:
silver ℹ from CPL
Noble design (for an extra charge):

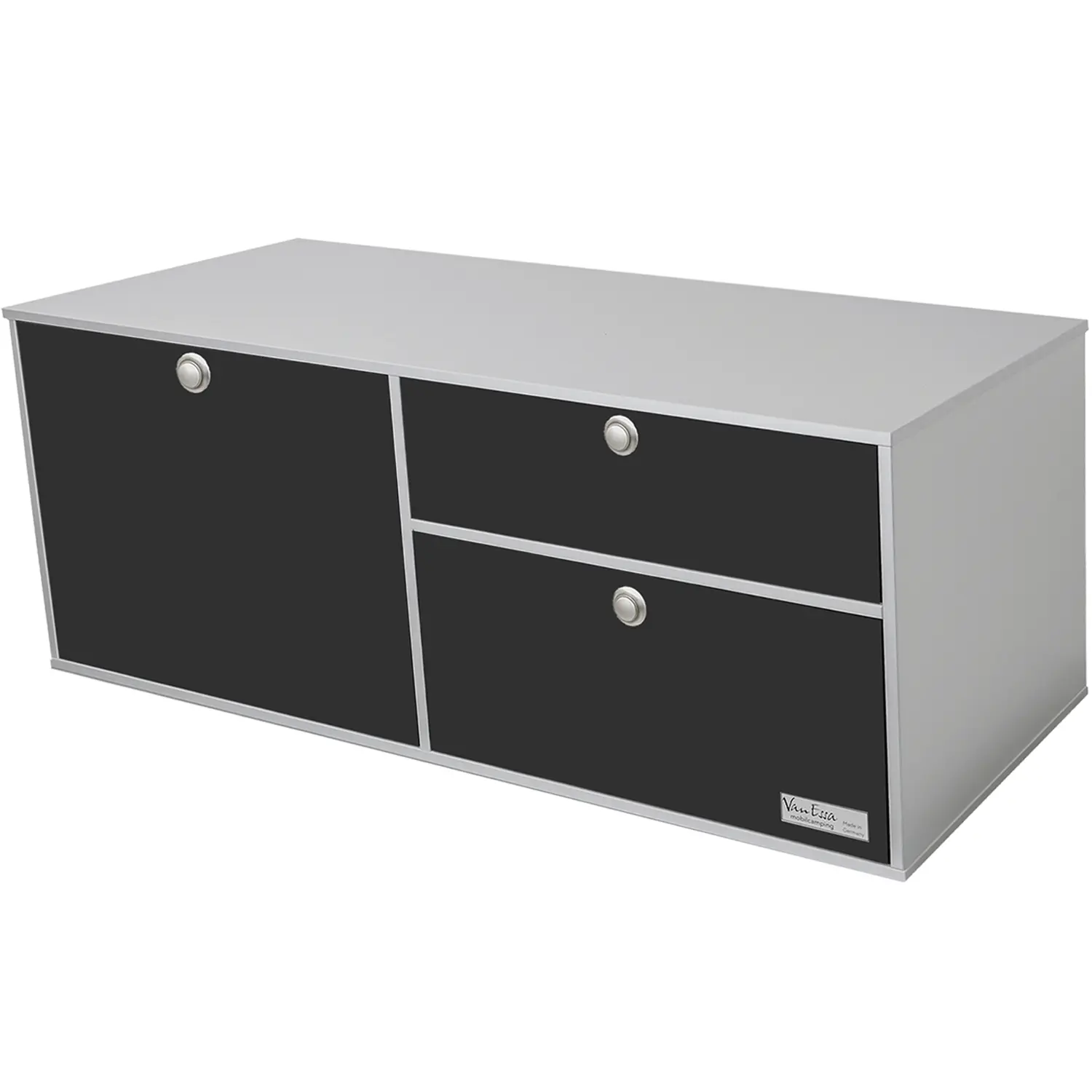

Black matt ℹ from CPL

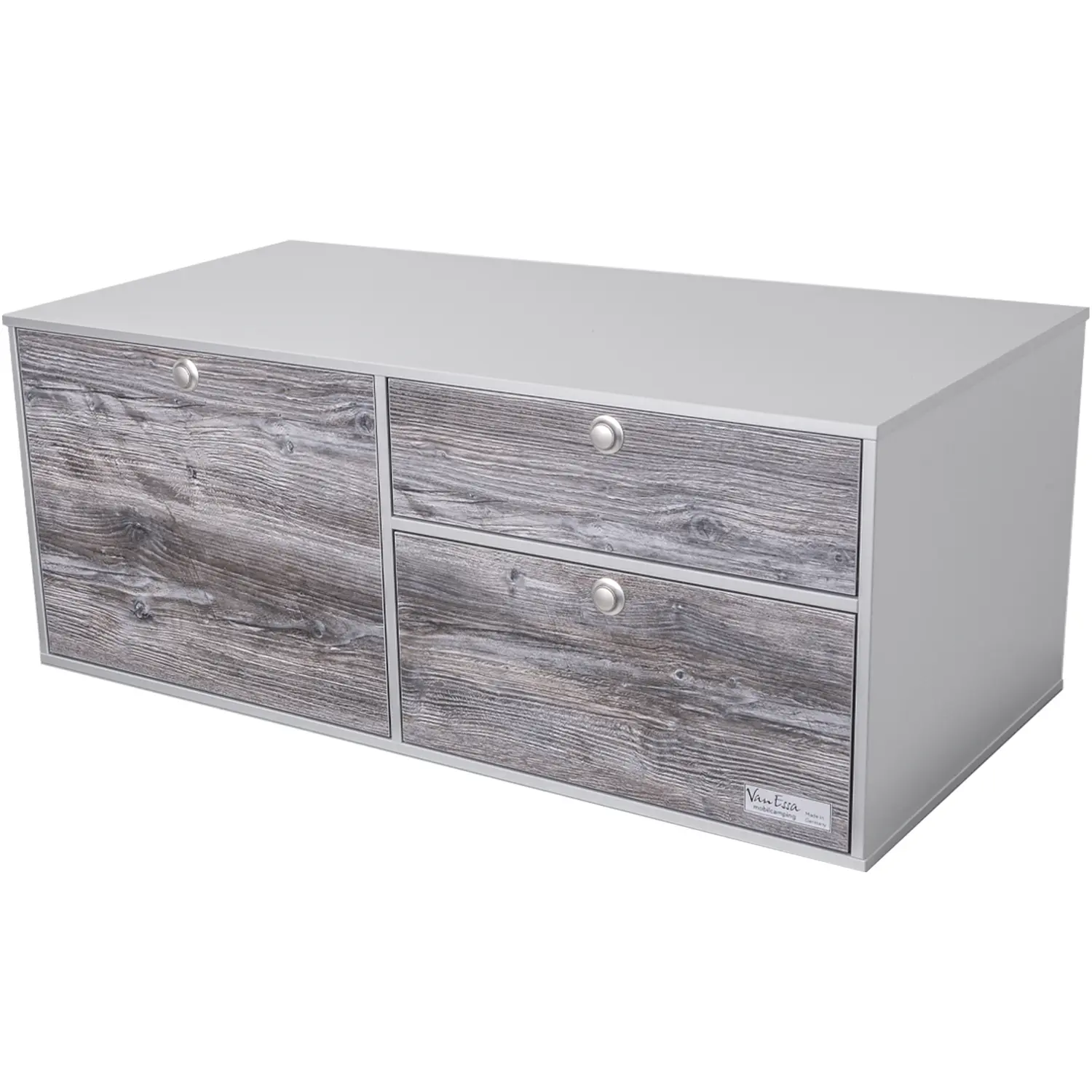

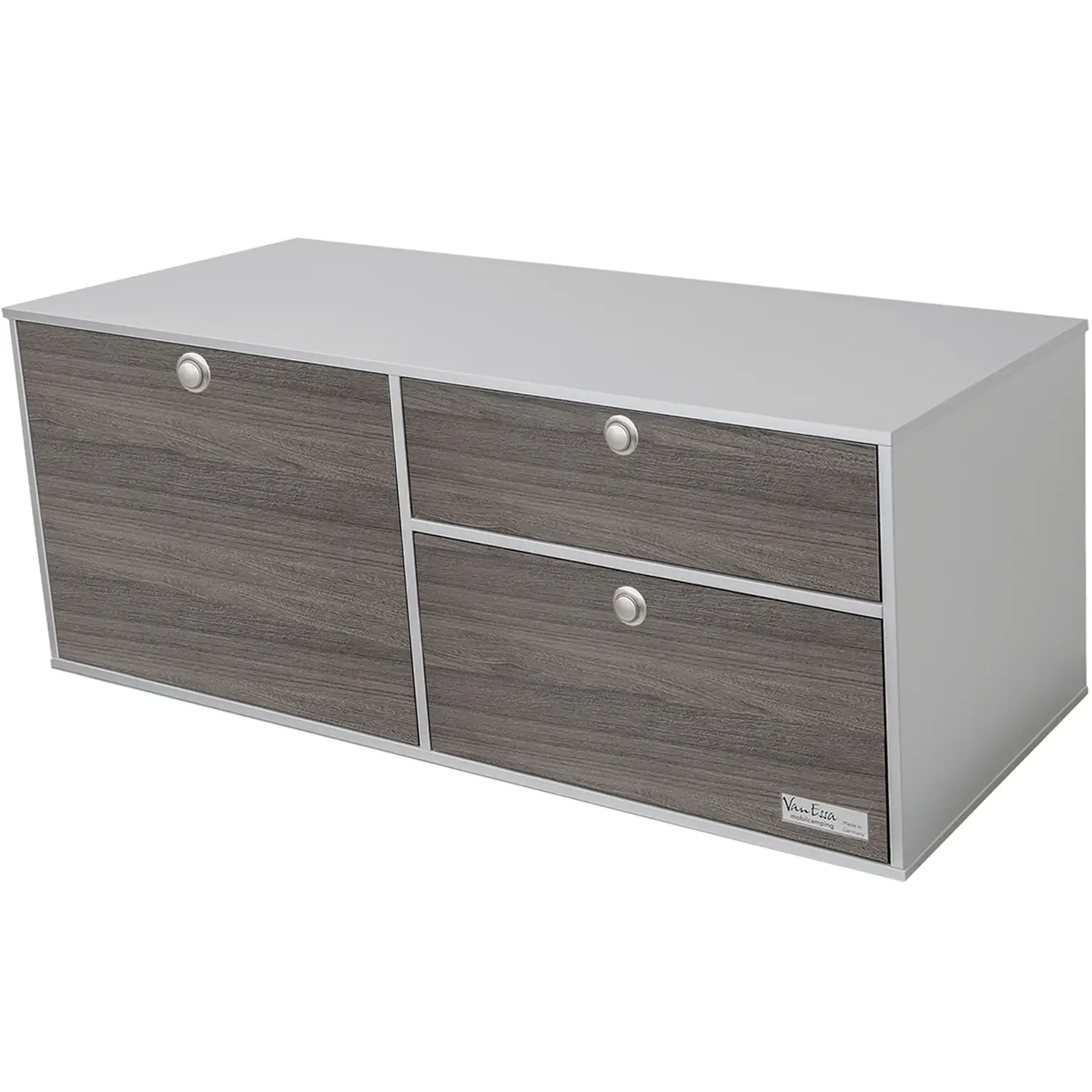

Wood decors:
Swiss ℹ, Bulli ℹ
, Wild oak ℹ
made of HPL
(selection in dropdown)
Excerpts
Quality full-extension runners from Blum with soft-close function
Fittings
High-quality furniture fittings (soft pull-outs, elegant push locks with escutcheons, hinges, etc.)
Carcass & drawers
Poplar plywood with CPL coating (silver)
