Sleeping system Van in addition to kitchen Spacetourer / Pössl Vanster / Traveller / Proace Verso / Zafira Life / E-Ulysee
A RESTFUL SLEEP ON THE ROAD IN THE SPACETOURER, TRAVELLER, PROACE VERSO, ZAFIRA LIFE, E-ULYSSE OR PÖSSL VANSTER - THE IDEAL ADDITION TO THE REAR KITCHEN
Our sleeping system Van can be set up in just a few steps and with very flexible seat combinations:
- without rear seats
- with two individual seats
- or with one bench seat folded down
- both rear seat rows possible with a long vehicle version
short vehicle length: bed can only be set up without seats or only with the front bench, the rear bench must be removed.
medium vehicle length: bed can be set up with all seating situations (without seats, with rear bench, with front bench, with both rows of seats).
If the rear bench (with medium vehicle length) is to remain installed, the rear bench seat unfortunately cannot be folded up and used.
Long vehicle length: Bed can be set up with all seating situations (without seats, with rear bench, with front bench, with both rows of seats).
For vehicles with rail system from year of construction 2022:
Due to drastic changes to the rail system by the vehicle manufacturer, the sleeping systems can only be used with one row of seats maximum.
This means that you remain completely flexible and can use the bed according to the situation. During the journey, the system rests in the luggage compartment. The passenger compartment and existing seats can be fully used.
Please specify when ordering (dropdown)
Vehicle length: XS, S, compact (4.6 m) - M, L1, L2 (4.9 m) - L, XL, L2, L3 (5.3 m)
Additional support leg: if the bed is to be set up in combination with 2 seats (2-seater bench), an additional support leg is required instead of the single seat.
Your van remains an everyday vehicle that can be converted into a motorhome as required.
Overview and advantages
- comfortable bed area as a double bed
- high-quality, comfortable COMFORT sleeping surface
- lots of storage space
- very easy to assemble and disassemble
- Sleeping board and mattress can be stored on the rear galley during the journey to save space
Assembly
- Attach the rear kitchen to the rail system in the boot of the vehicle.
- Attach the sleeping board to the rear kitchen or the middle sleeping board, stabilise it on the folding supports or place it on the folded seats in the front passenger compartment (on one or two folding supports, depending on the seating situation).
- Spread out the sleeping mat - done!
Details
Material: poplar plywood with CPL coating (silver)
VanEssa care and cleaning instructions "furniture" VanEssa product and care info "mattress"bed size/dimensions mattress
width approx 135 cm, COMFORT Mattress,4 pcs, approx. width 135/120 cm, length 188 cm, height 10 cm

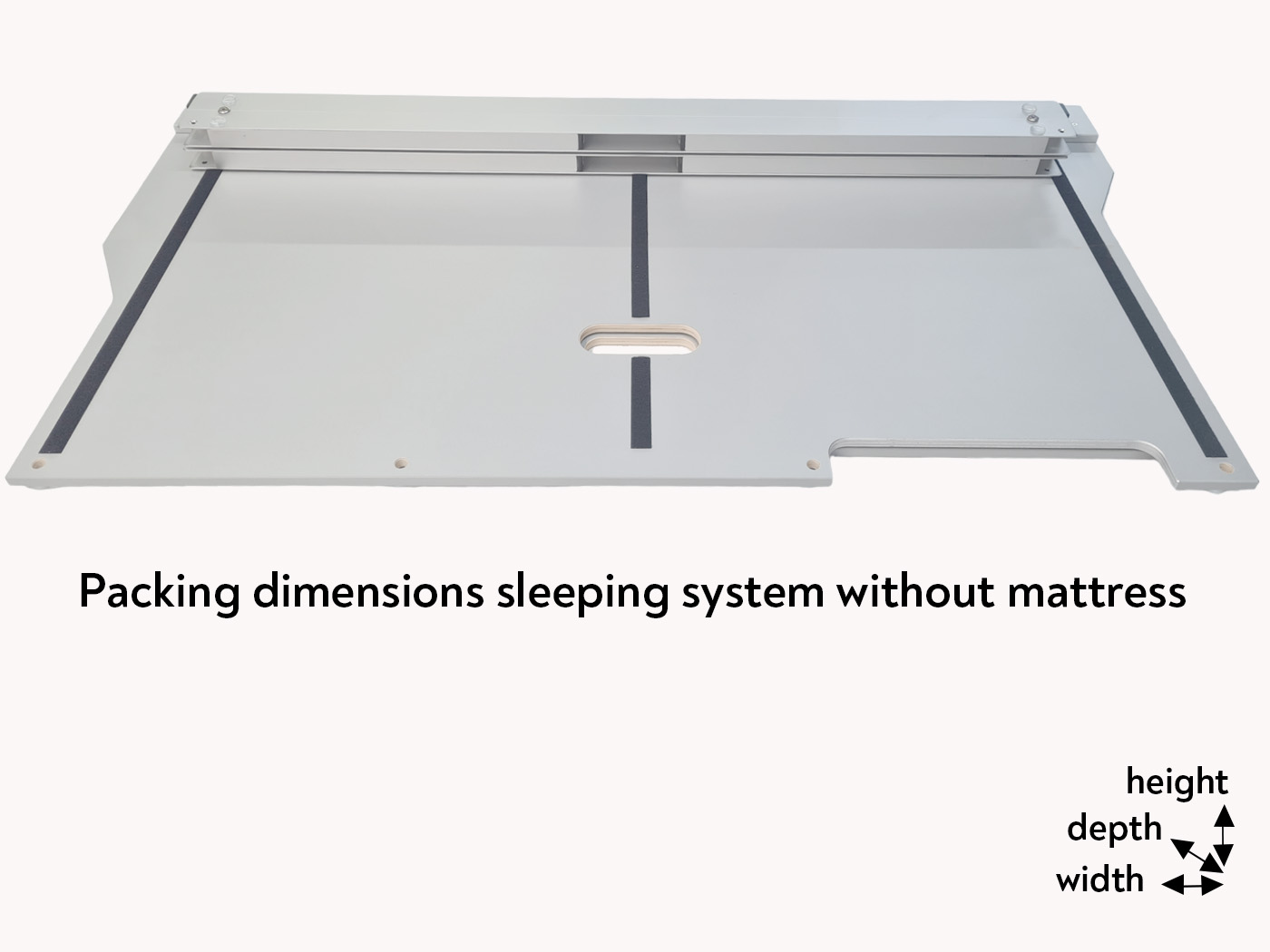

packing dimensions (expanded)
Sleeping System (without mattress) approx. width 126 cm, length 69 cm, height 10 cm
Mattress approx. width 135 cm, length 47 cm, height 40 cm
Weight
31 kg (19 kg +mattress 12 kg)
Load capacity approx.250 kg
Scope of supply
- sleeping board middle
- sleeping board front
- 2 folding brackets
- as required: supporting bracket if sleeping system is used in combination with 2-seated bench (choose in dropdown)
- 4-part COMFORT mattress: width 120-135 cm (narrowed in the back due to car lining), length 188 cm, height 10 cm
- all mounting parts are included in delivery
