Swivel console for Volkswagen T5/T6/T6.1 passenger seat Article picture

Swivel console for Volkswagen T5/T6/T6.1 passenger seat swivel function

Swivel console for Volkswagen T5/T6/T6.1 passenger seat in VW Bus

Swivel console for Volkswagen T5/T6/T6.1 passenger seat in bus with modular tower

Swivel console for VW T5 / T6 / T6.1 - Passenger seat

Name: Drehkonsole für VW T5 / T6 / T6.1 - Beifahrersitz
Brand: Fahrzeugzubehör
SKU: 682
Availability: InStock

Ideal addition for more flexibility in the vehicle interior

Contact: Do you have a question about this product?

from

265,00 €

incl. VAT | free shipping*

Delivery information

Delivery time approx. 4-5 working days

Free delivery within DE

Insured shipping

Shipping via DHL

Collection & installation on site

Ready for collection immediately

5% Discount for self-collectors¹

Free installation service

With appointment

Configure your module:

Select your suitable configuration to add the product to the shopping cart.

Item number for your selection:

VW

T5 California Beach
T5 Caravelle
T5 Multivan
T5 Transporter
T6 California Beach
T6 Caravelle
T6 Multivan
T6 Transporter
T6.1 California Beach
T6.1 California Beach Camper
T6.1 California Beach Tour
T6.1 Caravelle
T6.1 Multivan
T6.1 Transporter

Shipping method

Collection incl. assembly
Collection without assembly
by parcel service

Clear

Share this product

VanEssa - synonymous with mobility, independence and quality.

SWIVEL CONSOLE FOR VOLKSWAGEN T5 / T6 / T6.1 PASSENGER SEAT

Converts any original VW seat into a comfortable swivel seat and enlarges the interior of your van by "turning the hand (seat) around".

Use the seat in an inverted position, for example to have breakfast in the van in combination with a table or modular tower when it rains. The original seat is retained, the swivel seat fitting is simply fitted in between. The console can be rotated very easily thanks to the integrated castors.

Overview and advantages

Premium flat swivel bracket with ABE
Cockpit is integrated into the living area
Pivot point is centered
Roller bearing
Cable feed-through through rotary axis possible; therefore also works with existing seat heating, airbag and other cables
Also suitable for original front passenger seat with height adjustment; height adjustability is retained
Installation without drilling or welding; the bracket is mounted between the seat bracket and the original slide rails using special screws
The console has a general operating license (ABE) - this applies for Germany only (issued by the Federal Motor Transport Authority); no subsequent registration required

Assembly & installation

The swivel console is fitted between the front passenger seat and the console. For this purpose

the seat is unscrewed from the console
the swivel bracket screwed onto the original bracket
If available, cables are inserted through the cable gland
The seat is then screwed onto the swivel bracket

The installation costs for installation at the VanEssa factory (see dropdown) are not applicable for self-assembly

NO installation possible with electrically adjustable front passenger seat!

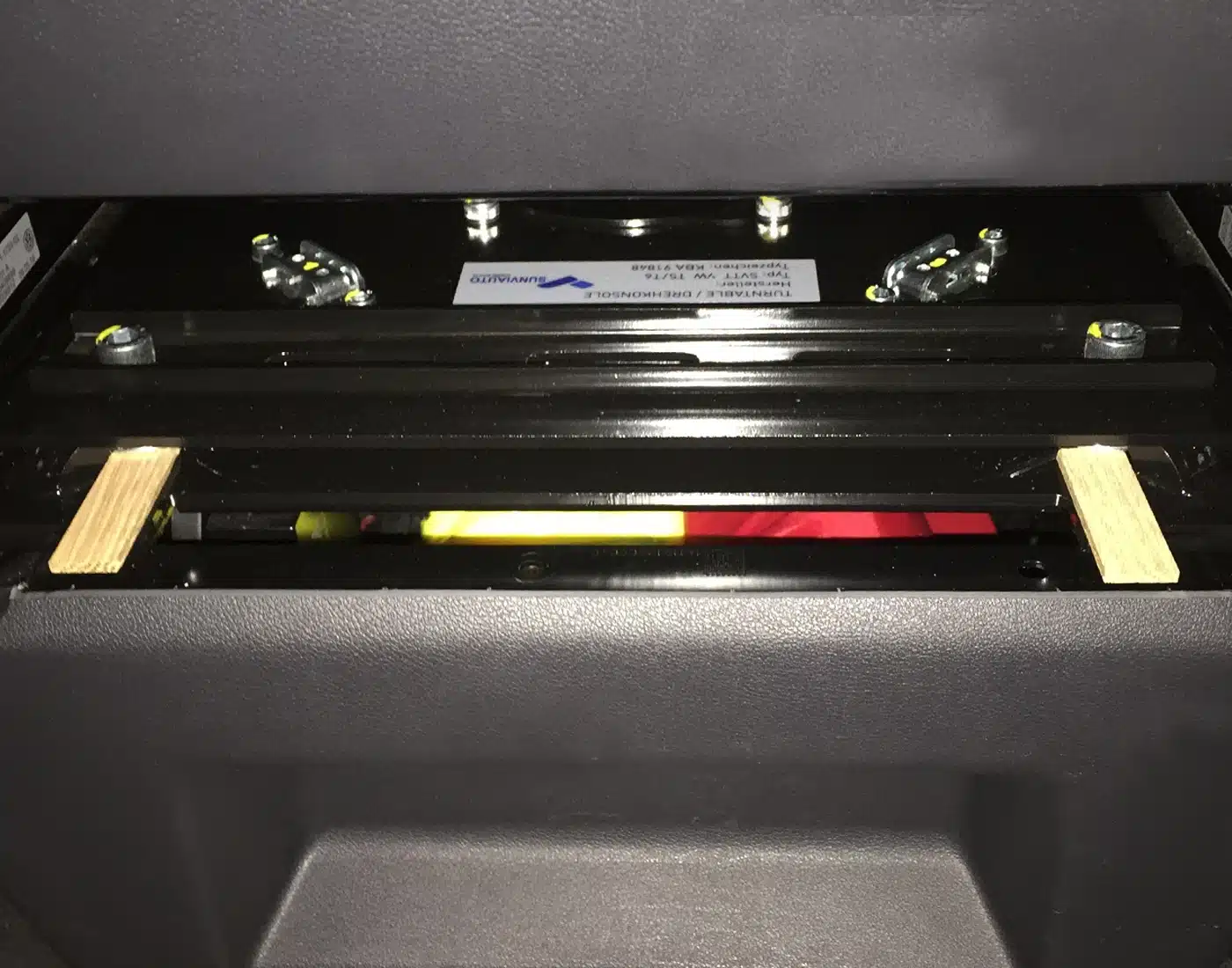

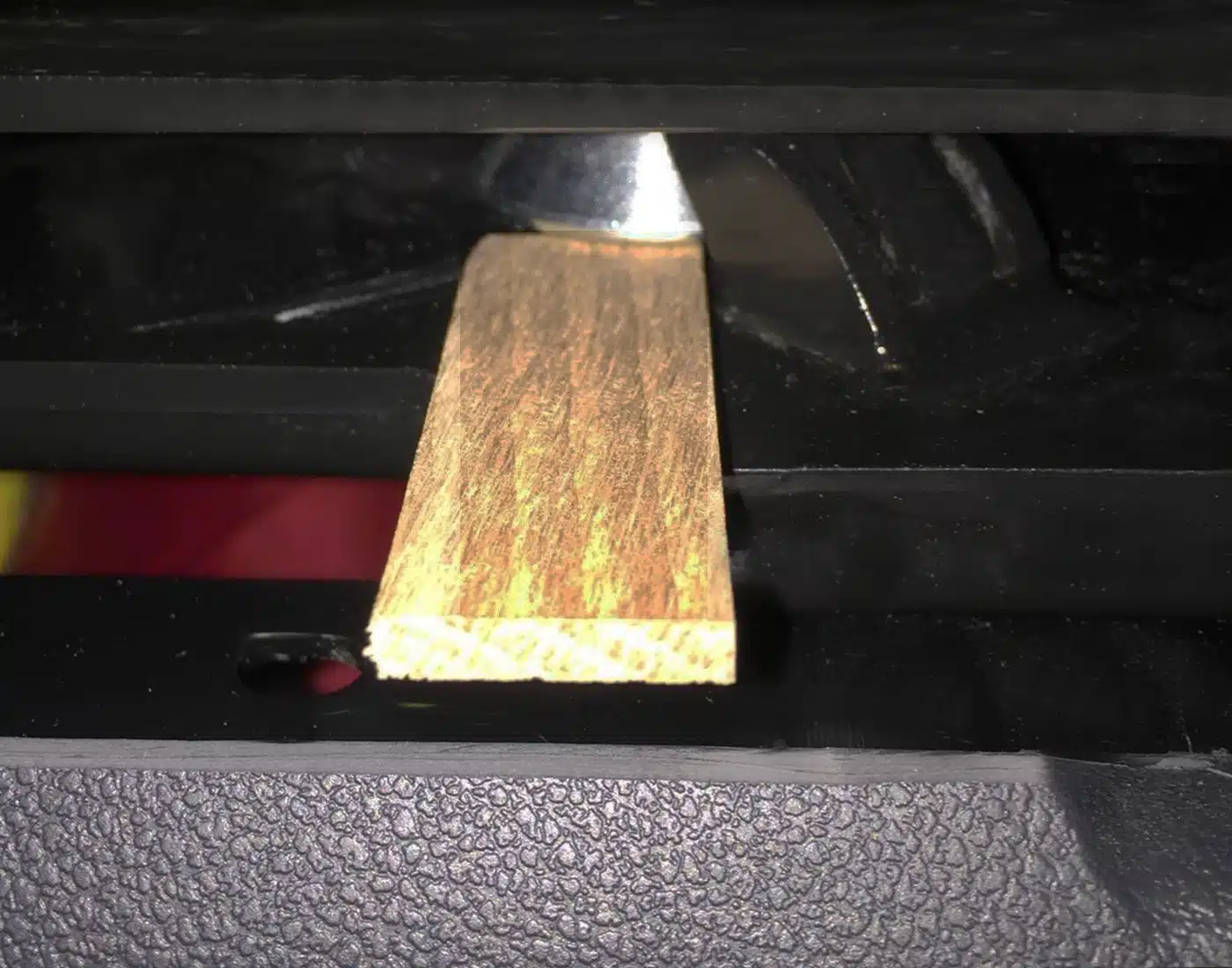

Please note that a retrofitted rotating console may not be as perfectly adapted as the original installation. In the original seat, the rotation mechanism is already installed directly in the seat console. As a result, retrofitting sometimes results in a certain amount of flexibility under the console, which can occasionally cause a noise under the seat when not under load. To prevent this, small wooden chocks are supplied with the delivery (see Figure1 ℹ
and Figure2 ℹ ). To turn the seat, these must be removed beforehand.
The seat console cover must either be removed after fitting the swivel console or cut off at the top (see Figure3, so that the seat can be rotated. You are welcome to send us your seat cover. We will cut it off cleanly and send it back to you.
After fitting the new console with ABE, the seat can be moved approx. 3 cm less forward

SWIVEL CONSOLE FOR VOLKSWAGEN T5 / T6 / T6.1 PASSENGER SEAT

Converts any original VW seat into a comfortable swivel seat and enlarges the interior of your van by "turning the hand (seat) around".

Use the seat in an inverted position, for example to have breakfast in the van in combination with a table or modular tower when it rains. The original seat is retained, the swivel seat fitting is simply fitted in between. The console can be rotated very easily thanks to the integrated castors.

Overview and advantages

Premium flat swivel bracket with ABE
Cockpit is integrated into the living area
Pivot point is centered
Roller bearing
Cable feed-through through rotary axis possible; therefore also works with existing seat heating, airbag and other cables
Also suitable for original front passenger seat with height adjustment; height adjustability is retained
Installation without drilling or welding; the bracket is mounted between the seat bracket and the original slide rails using special screws
The console has a general operating license (ABE) - this applies for Germany only (issued by the Federal Motor Transport Authority); no subsequent registration required

Assembly & installation

The swivel console is fitted between the front passenger seat and the console. For this purpose

the seat is unscrewed from the console
the swivel bracket screwed onto the original bracket
If available, cables are inserted through the cable gland
The seat is then screwed onto the swivel bracket

The installation costs for installation at the VanEssa factory (see dropdown) are not applicable for self-assembly

NO installation possible with electrically adjustable front passenger seat!
Please note that a retrofitted rotating console may not be as perfectly adapted as the original installation. In the original seat, the rotation mechanism is already installed directly in the seat console. As a result, retrofitting sometimes results in a certain amount of flexibility under the console, which can occasionally cause a noise under the seat when not under load. To prevent this, small wooden chocks are supplied with the delivery (see Figure1 ℹ
and Figure2 ℹ ). To turn the seat, these must be removed beforehand.
The seat console cover must either be removed after fitting the swivel console or cut off at the top (see Figure3, so that the seat can be rotated. You are welcome to send us your seat cover. We will cut it off cleanly and send it back to you.
After fitting the new console with ABE, the seat can be moved approx. 3 cm less forward
